Setting Up SSH Access

To enable SSH access for your image, the openssh-server package must be installed. Many images do not include this package by default and require manual installation. There are three methods to include it in your template:
  1. Create a new image using your base image and upload it to Docker Hub.
  2. Modify your existing pipeline by adding an installation script to the Dockerfile.
  3. Install it during instance provisioning (not recommended due to performance impact).
  • New Image
  • Existing Dockerfile
  • Runtime Installation (Not Recommended, Slow)
If you do not have an existing Dockerfile, you must create one. For example, if you wish to use the PyTorch 2.9.0 official image as your base, your Dockerfile should contain the following:
Dockerfile
FROM pytorch/pytorch:2.9.0-cuda12.8-cudnn9-runtime

# Install SSH server and dependencies
RUN apt-get update && \
apt-get install -y openssh-server && \
apt-get clean && \
rm -rf /var/lib/apt/lists/*

# Configure SSH
RUN mkdir -p /var/run/sshd && \
sed -i 's/#PermitRootLogin prohibit-password/PermitRootLogin prohibit-password/' /etc/ssh/sshd_config && \
sed -i 's@session\s*required\s*pam_loginuid.so@session optional pam_loginuid.so@g' /etc/pam.d/sshd && \
ssh-keygen -A

# Create SSH directory for root
RUN mkdir -p /root/.ssh && \
chmod 700 /root/.ssh
Ensure that Docker is installed on your system. If not already authenticated, log in to Docker Hub:
docker login
To build your Docker image, execute the following command:
docker build -t your-dockerhub-username/your-image-name:latest .
If you are using a different architecture than x86_64 (e.g., ARM64 for Apple Silicon), you may encounter an InvalidBaseImagePlatform error.To resolve this issue, specify the target platform using the --platform linux/amd64 argument:
docker build --platform linux/amd64 -t your-dockerhub-username/your-image-name:latest .
Push your image to Docker Hub:
docker push your-dockerhub-username/your-image-name:latest
Once your image is successfully pushed and available on Docker Hub, you can reference it as the Image Name in your template configuration.

​
Configure Template Startup Script

In the Advanced section of your custom template dialog, configure the Container Start Script as follows:
#!/bin/bash

# Set up SSH key from environment variable
if [ ! -z "$PUBLIC_KEY" ]; then
    echo "$PUBLIC_KEY" > /root/.ssh/authorized_keys
    chmod 600 /root/.ssh/authorized_keys
fi

# Set SSH port from environment variable
if [ ! -z "$SSH_PORT" ]; then
    sed -i '/^#*Port /d' /etc/ssh/sshd_config
    echo "Port $SSH_PORT" >> /etc/ssh/sshd_config
fi

echo "Starting SSH server on port ${SSH_PORT:-22}"

# Start SSH service in foreground
exec /usr/sbin/sshd -D
This configuration ensures that both PUBLIC_KEY and SSH_PORT environment variables are properly injected during the provisioning process.

​
Environment Variables

Configure the following environment variables in your template settings to customize SSH access:
VariableDescriptionExample Value
SSH_PORTCustom SSH port1234
PUBLIC_KEYYour SSH public key for authenticationssh-rsa AAAAB3NzaC1yc2E...

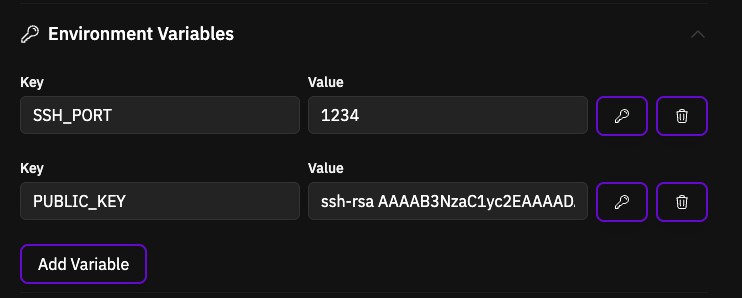

Environment Variables Configuration

​
Connecting via SSH

Once your Pod is running with SSH properly configured, establish a connection using the following command:
ssh -p <SSH_PORT> root@<POD_IP>
While root is the default user for most images, this may vary depending on your base image. Ensure that the user specified in your SSH connection matches the system user configured within your container image.

​
Testing Your Image Locally

To test your image locally, verify that the SSH service functions correctly before deploying to production. First, create the startup script file:
custom_start_script.sh
#!/bin/bash

# Set up SSH key from environment variable
if [ ! -z "$PUBLIC_KEY" ]; then
    echo "$PUBLIC_KEY" > /root/.ssh/authorized_keys
    chmod 600 /root/.ssh/authorized_keys
fi

# Set SSH port from environment variable
if [ ! -z "$SSH_PORT" ]; then
    sed -i '/^#*Port /d' /etc/ssh/sshd_config
    echo "Port $SSH_PORT" >> /etc/ssh/sshd_config
fi

echo "Starting SSH server on port ${SSH_PORT:-22}"

# Start SSH service in foreground
exec /usr/sbin/sshd -D
Ensure that the startup script has executable permissions:
chmod +x ./custom_start_script.sh
  • Test Built Image
  • Test Docker Hub Image
If you built your image locally using a Dockerfile, first build the image:
docker build --platform linux/amd64 -t your-image-name:latest .
Then run the container with the following command:
docker run --rm \
  --name pi-docker-runner \
  --privileged \
  --ipc=host \
  --shm-size=8G \
  -p 22:22 \
  -e PUBLIC_KEY="your-public-key" \
  -e SSH_PORT=22 \
  -v ./custom_start_script.sh:/custom_start_script.sh \
  --entrypoint /bin/bash \
  your-image-name:latest \
  -c "/custom_start_script.sh"
Replace your-public-key with your actual SSH public key content (e.g., ssh-rsa AAAAB3NzaC1yc2E...).
Once the container is running, connect via SSH using:
ssh -p 22 root@localhost -i local_private_key.pem
The private key file must have permissions set to 600 (or 400 on some systems) for SSH to accept it. You can set this using:
chmod 600 local_private_key.pem
